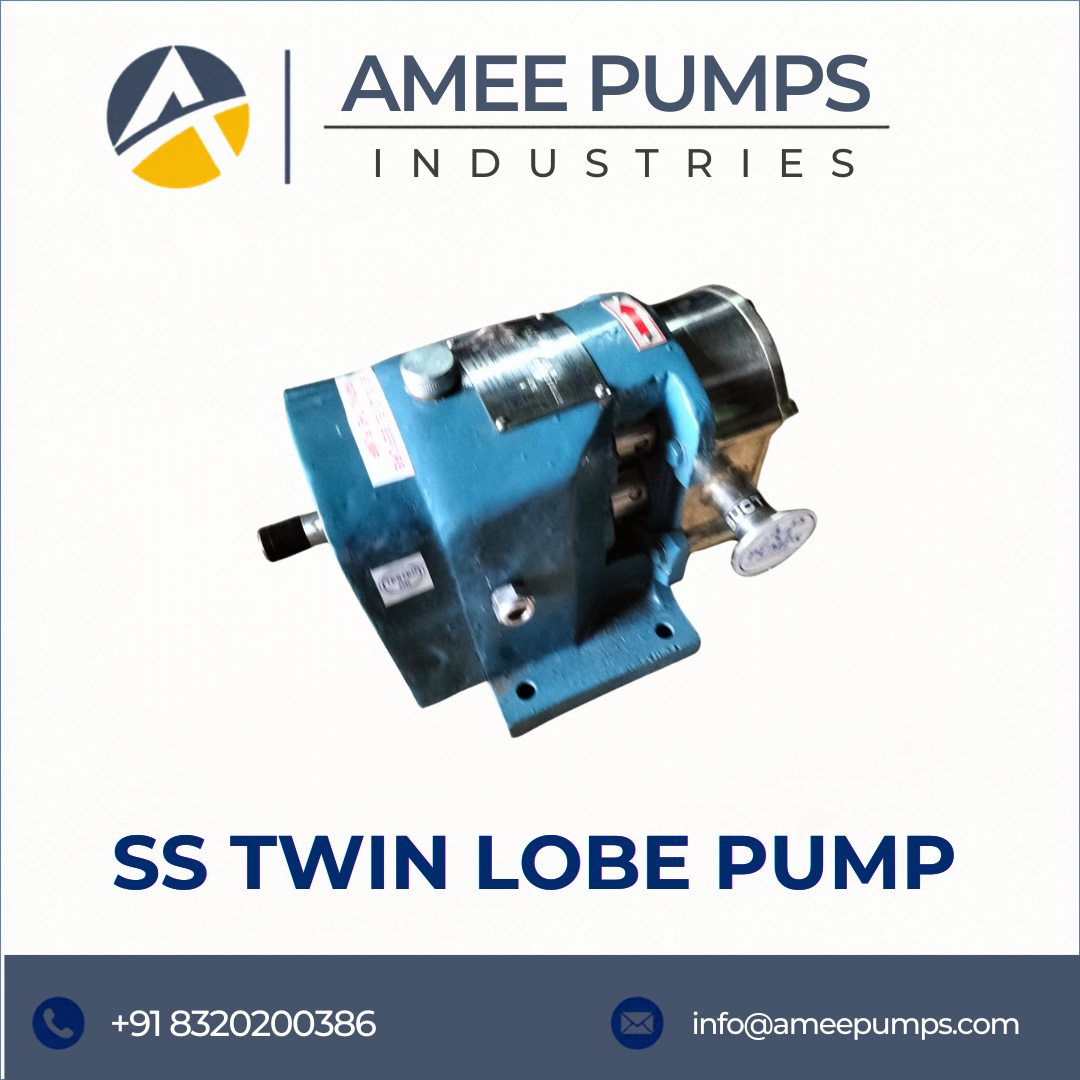

What is an SS Twin Lobe Pump — Overview

An SS Twin Lobe Pump, also known as a rotary lobe pump, is a type of positive displacement pump designed to move fluids by using two synchronized rotating lobes. These lobes, typically made from stainless steel (SS) for hygiene and corrosion resistance, rotate within a close-tolerance casing. As the lobes rotate, they create expanding cavities on the suction side, drawing fluid into the pump. On the discharge side, the lobes move together, reducing the cavity volume and forcing the fluid out under pressure. This mechanism ensures a consistent flow rate, regardless of system pressure variations, making it ideal for viscous and shear-sensitive liquids.

Key Features and Technical Specifications

• Material of Construction: Primarily constructed from SS304 or SS316L stainless steel for superior corrosion resistance and hygienic applications.
• Rotor Design: Features precisely machined twin lobes that rotate without touching each other or the casing, minimizing shear and wear.
• Sealing Options: Available with various mechanical seals or gland packing to suit different fluid types and operating conditions.
• Capacity Range: Offered in a wide range of flow rates to accommodate diverse process requirements, from small batch to large-scale production.
• Pressure Capabilities: Capable of generating moderate to high pressures, suitable for challenging transfer applications.
• Viscosity Handling: Efficiently pumps fluids with viscosities ranging from a few centipoise to several hundred thousand centipoise.
• Hygiene Standards: Designed for easy cleaning and sterilization (CIP/SIP capabilities) in food, dairy, and pharmaceutical applications.
• Shaft Synchronization: Driven by external timing gears to ensure precise synchronization of the lobes, preventing contact.

Industrial Applications and Use Cases

• Food & Beverage: Transferring viscous products like chocolate, jams, dough, yogurt, and ice cream without damaging texture or structure.
• Pharmaceuticals: Pumping creams, ointments, suspensions, and active pharmaceutical ingredients (APIs) where sterility and gentle handling are critical.
• Chemical Industry: Moving resins, adhesives, polymers, paints, and various chemicals that are viscous or shear-sensitive.
• Wastewater Treatment: Handling sludge, slurries, and viscous waste streams in municipal and industrial treatment plants.
• Cosmetics: Pumping lotions, shampoos, conditioners, and other personal care products.
• Biotechnology: Transferring cell cultures, fermentation broths, and other sensitive biological fluids.
• Oil & Gas: Used in specific applications for transferring viscous crude oil or specialized lubricants.
• Printing Industry: Pumping inks and coatings that require consistent viscosity and flow.

How to Choose the Right SS Twin Lobe Pump

Selecting the appropriate SS Twin Lobe Pump involves careful consideration of several factors to ensure optimal performance and longevity for your specific application.

• Fluid Characteristics: Accurately determine the viscosity, temperature, solids content, shear sensitivity, and corrosiveness of the fluid to be pumped.
• Flow Rate and Pressure Requirements: Define the required discharge rate (e.g., liters per minute or cubic meters per hour) and the system discharge pressure.
• Material Compatibility: Ensure the pump's wetted parts (especially the stainless steel grade) are compatible with the fluid to prevent corrosion or contamination.
• Hygiene and Sterilization Needs: For food, dairy, and pharmaceutical applications, verify the pump's design meets CIP (Clean-In-Place) and SIP (Sterilize-In-Place) requirements.
• Seal Type: Choose between mechanical seals or gland packing based on the fluid's properties and operating conditions to prevent leaks.
• Motor and Drive Specifications: Select a motor and drive system that provides the necessary power, speed control, and explosion-proof rating if required.
• Certifications and Standards: Verify if the pump meets relevant industry standards (e.g., FDA, EHEDG, ATEX) for your application.
• Supplier Reputation and Support: Partner with a reputable manufacturer offering technical expertise, reliable after-sales service, and spare parts availability.

Quality Standards and Compliance

For industrial applications, particularly in regulated sectors like food, pharmaceuticals, and chemicals, adherence to stringent quality standards and compliance is non-negotiable. SS Twin Lobe Pumps intended for these uses should meet international benchmarks. Look for manufacturers who can demonstrate compliance with standards such as FDA (Food and Drug Administration) regulations for food contact materials, EHEDG (European Hygienic Engineering & Design Group) guidelines for hygienic design, and ATEX directives for equipment used in potentially explosive atmospheres. Certifications like ISO 9001 for quality management systems also indicate a manufacturer's commitment to consistent product quality and reliable processes. Verifying these aspects ensures the pump not only performs reliably but also meets safety and regulatory requirements.

Why Amee Pumps Industries' Experience and Capability Matters

At Amee Pumps Industries, our foundation is built on two decades of hands-on experience in pump design and manufacturing, led by seasoned professionals like Mr. Amit Panchal. We leverage a technology-driven approach, which allows us to achieve precision in every SS Twin Lobe Pump we produce while optimizing design costs. Our manufacturing processes are honed for efficiency and accuracy, ensuring that each pump meets rigorous internal quality controls. We understand the critical nature of fluid handling in Ahmedabad's diverse industries and are equipped to provide customized solutions tailored to specific application needs.

Our commitment extends beyond manufacturing; we focus on delivering reliable performance and robust after-sales support. This dedication to quality, combined with our technical expertise and proven track record, makes Amee Pumps Industries a dependable choice for businesses seeking high-performance SS Twin Lobe Pumps that ensure operational continuity and product integrity.

Installation, Maintenance, and Care Tips

Proper installation and regular maintenance are crucial for the longevity and optimal performance of your SS Twin Lobe Pump.

• Installation: Ensure the pump is installed on a solid, level foundation to minimize vibration. Align the pump and motor shafts accurately during coupling. Connect piping securely, avoiding undue stress on the pump casing. For hygienic applications, ensure all connections are properly sealed and sanitary.
• Initial Startup: Before the first run, prime the pump if necessary and slowly introduce the fluid. Check for proper rotation direction. Monitor for any unusual noises or vibrations.
• Routine Checks: Regularly inspect seals for leaks. Check bearing lubrication levels and replenish as per manufacturer recommendations. Monitor pump performance (flow rate, pressure) for any deviations.
• Cleaning: For hygienic applications, follow established CIP and SIP procedures diligently. Ensure all internal surfaces are thoroughly cleaned and dried.
• Maintenance: Schedule periodic inspections of the lobes, casing, and timing gears for wear. Replace worn components promptly to prevent damage to other parts. Lubricate bearings according to the schedule.
• Spare Parts: Keep critical spare parts, such as seals and gaskets, readily available to minimize downtime in case of failure.

Frequently Asked Questions

Conclusion

For industries in Ahmedabad requiring the precise and gentle transfer of viscous or delicate fluids, the SS Twin Lobe Pump offers a robust and reliable solution. Understanding the specific characteristics of your fluid, the demands of your process, and the critical quality standards is key to selecting the right equipment. Amee Pumps Industries, with its deep expertise and commitment to quality manufacturing in Ahmedabad, is well-positioned to provide the SS Twin Lobe Pumps that meet these stringent requirements, ensuring your operations run smoothly and efficiently. Partnering with an experienced manufacturer like Amee Pumps Industries guarantees not only a high-quality product but also the technical support necessary for long-term operational success.
