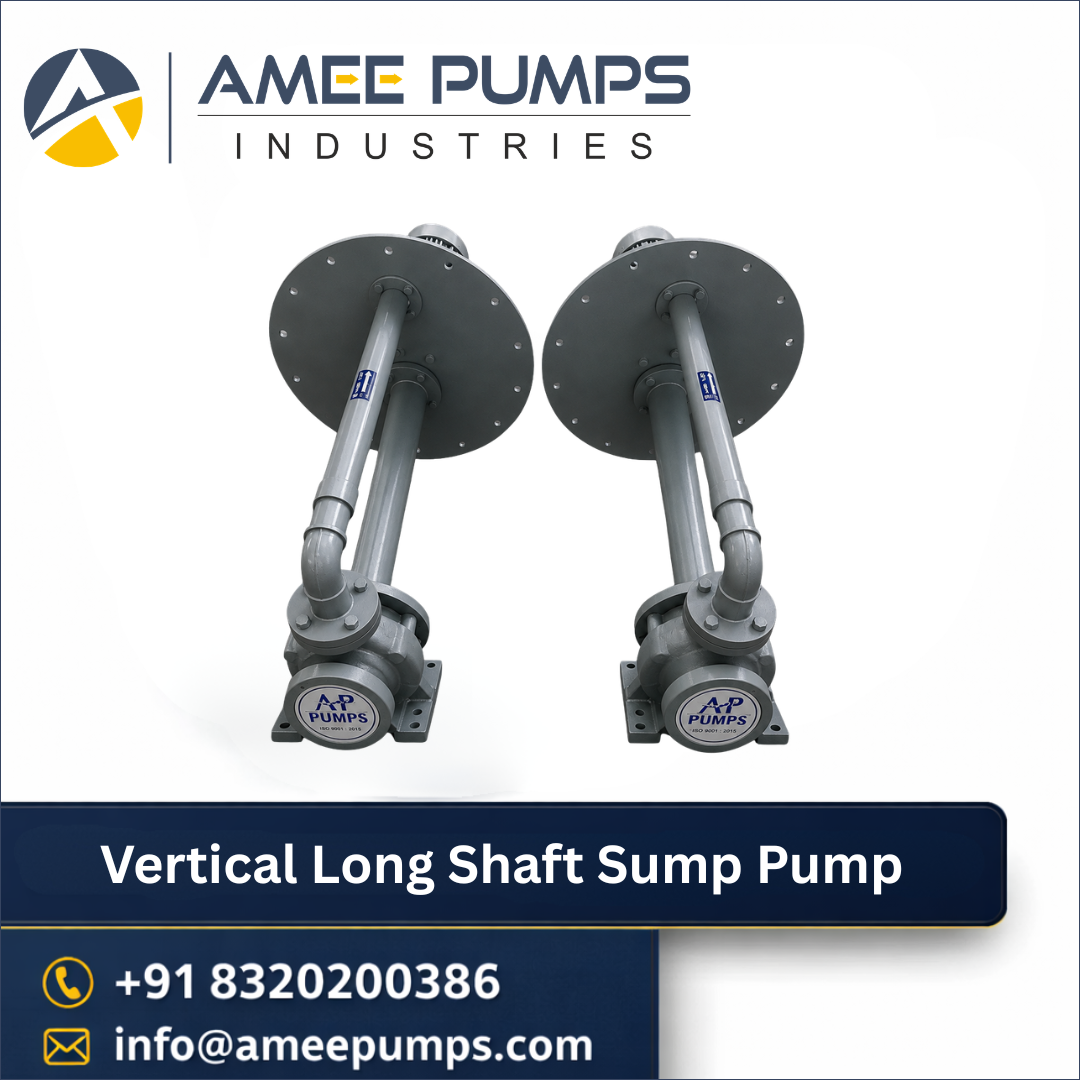

What is a Vertical Long Shaft Sump Pump? — Overview

A vertical long shaft sump pump is a type of centrifugal pump designed for submersible operation in sumps, pits, or tanks. Its defining characteristic is the long shaft connecting the motor, typically located above the liquid level, to the pump impeller submerged in the fluid. This design keeps the motor dry and protected from the pumped medium, which is ideal for corrosive, abrasive, or hot liquids. The pump casing, often a volute design, directs the fluid efficiently to the discharge outlet. These pumps are engineered for continuous operation and are widely employed for lifting liquids from sumps, basements, or collection pits to a higher discharge point.

Key Features and Technical Specifications

Vertical long shaft sump pumps are built with specific features to ensure performance and durability in demanding industrial environments. Understanding these specifications is crucial for selecting the appropriate model for your application.

• Head Capacity: Capable of generating heads up to 55 meters, suitable for significant vertical fluid lift.
• Flow Rate: Offers flow rates up to 500 liters per minute, accommodating moderate to high fluid volumes.
• Sealing Options: Available with both gland packing and mechanical seals, providing flexibility for different fluid types and operating conditions.
• Operating Temperature: Designed to handle fluids with temperatures up to 150°C, making them suitable for hot water or process fluid applications.
• Motor Power Range: Available in a wide range of motor ratings from 0.75 kW to 15 kW (approximately 1 HP to 20 HP), allowing for precise matching to application requirements.
• Insulation Class: Features Class B or F insulation for the motor, ensuring reliable operation under varying thermal loads.
• Protection Rating: Offers IP44 or IP55 protection, safeguarding the motor against dust and water ingress.
• Material of Construction (MOC): Constructed from durable materials such as Cast Iron (C.I.), Wrought Carbon Steel (WCB), SS 304, and SS 316, allowing for selection based on fluid corrosivity and compatibility.

Industrial Applications and Use Cases

The versatility of vertical long shaft sump pumps makes them indispensable across a broad spectrum of industrial sectors. Their robust design and ability to handle challenging conditions ensure reliable fluid management.

• Wastewater and Sewage Pumping: Effectively transferring sewage and industrial wastewater from collection pits to treatment facilities or discharge points.
• Cooling Tower Water Circulation: Circulating water in cooling tower systems for HVAC and industrial cooling processes.
• Dewatering Applications: Removing groundwater or process water from construction sites, basements, or underground sumps.
• Chemical Process Fluid Transfer: Handling corrosive or abrasive chemicals in processing plants where motor isolation is critical.
• Boiler Feed Water Systems: Providing makeup water to boilers, often at elevated temperatures.
• Fire Fighting Systems: As part of emergency water supply systems, ensuring a reliable source of water.
• Food and Beverage Industry: Circulating or transferring process water and effluent in food processing plants, with appropriate material selection.
• Mining and Quarrying: Pumping water from sumps in mines and quarries to keep operations dry.

How to Choose the Right Vertical Long Shaft Sump Pump

Selecting the correct vertical long shaft sump pump is crucial for optimal performance, longevity, and cost-effectiveness. Consider these factors when making your decision:

• Required Flow Rate and Head: Accurately determine the volume of liquid to be moved per unit of time and the total vertical distance (head) the liquid needs to be lifted.
• Fluid Characteristics: Analyze the type of fluid (water, wastewater, chemical, hot), its temperature, viscosity, and presence of solids or abrasives. This dictates the MOC and sealing type.
• Sump/Pit Dimensions: Measure the depth and diameter of the sump or pit to ensure the pump's shaft length and overall dimensions are suitable.
• Motor Power and Electrical Requirements: Match the motor horsepower (HP) and voltage to the application's demands and available power supply.
• Sealing Requirements: Choose between gland packing for simpler applications or mechanical seals for more demanding, leak-sensitive duties.
• Material of Construction (MOC): Select materials (C.I., SS, etc.) that are compatible with the pumped fluid to prevent corrosion and ensure durability.
• Certifications and Standards: Verify if the pump meets relevant industry standards (e.g., IS, ISO) for safety and performance.
• Supplier Support and Service: Consider the availability of technical support, spare parts, and after-sales service from the manufacturer or supplier.

Quality Standards and Compliance

Ensuring that a vertical long shaft sump pump adheres to recognized quality standards is paramount for reliable and safe operation. In India, standards set by the Bureau of Indian Standards (BIS) are often critical. Manufacturers should ideally comply with ISO certifications, such as ISO 9001 for quality management systems, demonstrating a commitment to consistent product quality and customer satisfaction. For specific applications, pumps might need to meet standards related to electrical safety (like IEC standards) or specific industry requirements. Buyers should inquire about these certifications and request documentation to verify that the pump's design, manufacturing, and testing processes meet the necessary benchmarks for their intended industrial use.

Why Amee Pumps Industries' Experience and Capability Matters

At Amee Pumps Industries, our extensive experience in designing and manufacturing industrial pumps, including vertical long shaft sump pumps, sets us apart. Our manufacturing facility in Ahmedabad is equipped with advanced machinery and staffed by a team of experienced engineers and technicians dedicated to precision engineering. We understand the critical nature of fluid handling in industrial settings and focus on robust construction, efficient hydraulic design, and reliable performance. Our quality control processes are stringent, ensuring each pump leaving our facility meets rigorous internal standards and customer expectations. We pride ourselves on our ability to offer not just standard solutions but also customized pump designs tailored to unique application challenges, backed by comprehensive after-sales support to ensure your operations run smoothly.

Installation, Maintenance, and Care Tips

Proper installation and regular maintenance are key to maximizing the lifespan and performance of your vertical long shaft sump pump.

• Installation: Ensure the pump is installed vertically and securely mounted. The motor should be properly aligned with the pump shaft. Verify that the suction inlet is clear of debris and submerged adequately. Electrical connections must be made by a qualified electrician according to specifications.
• Initial Run: Before full operation, check the rotation direction of the motor. Run the pump briefly to ensure it primes correctly and operates smoothly without excessive vibration or noise.
• Regular Inspections: Periodically inspect the pump for any signs of wear, corrosion, or leaks. Check the motor for overheating.
• Sump Cleaning: Keep the sump or pit clean and free from accumulated sludge or debris that could clog the pump's inlet.
• Sealing System: Monitor the performance of the gland packing or mechanical seal. Adjust packing as needed or replace seals if leakage becomes excessive or performance degrades.
• Lubrication: Follow the manufacturer's recommendations for any lubrication requirements for bearings or other components.
• Seasonal Checks: For applications with seasonal use, ensure the pump is properly drained and stored if it will be idle for extended periods, especially in freezing conditions.

Frequently Asked Questions

Conclusion

For industrial facilities in Ahmedabad and across Gujarat, reliable fluid management is non-negotiable. Vertical long shaft sump pumps offer a robust and efficient solution for a wide array of applications, from wastewater management to process fluid circulation. When selecting a pump, carefully consider the specific demands of your application, including flow rate, head, fluid characteristics, and operating environment. Partnering with an experienced manufacturer like Amee Pumps Industries ensures you receive a high-quality, durable pump backed by technical expertise and responsive support. Investing in the right vertical long shaft sump pump is an investment in operational efficiency and long-term reliability.
