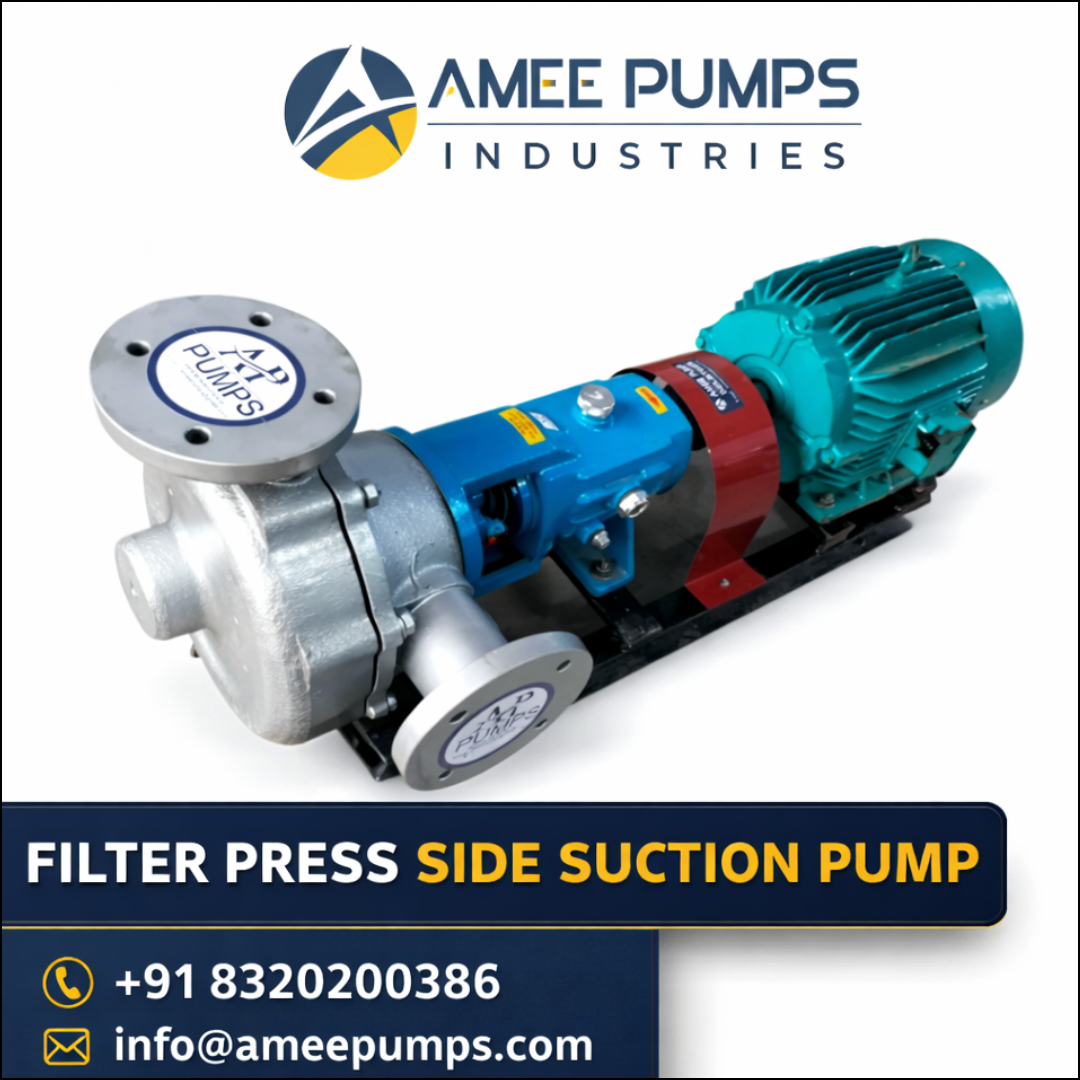

AFP Series Filter Press Pump by AMEE Industries

AMEE Industries manufactures the AFP Series Filter Press Pump, designed for demanding applications where high back pressure and solid-liquid separation are common requirements. This pump is commonly known as a filter press pump and is developed to handle suspensions used in industrial filtration systems. Its centrifugal design, semi-open non-clogging impeller, and strong bearing support make it suitable for continuous industrial use.

In Gujarat, industries such as chemicals, dyes, pharmaceuticals, ceramics, effluent treatment, and process manufacturing require dependable filtration equipment. A filter press side suction pump plays a key role in these systems by transferring slurry into the filter press with consistent pressure and controlled performance.

Understanding Filter Press Side Suction Pump

A filter press side suction pump is a centrifugal pump designed to feed liquid-solid mixtures into a filter press. The side suction design allows the pump to draw slurry efficiently and transfer it toward the filter press chambers. As pressure builds inside the filter press, liquid passes through the filter media, while solid particles remain inside the plates as filter cake.

Unlike general-purpose pumps, filter press pumps must handle changing pressure conditions during the filtration cycle. At the beginning of the process, the flow requirement may be higher. As the filter press fills and resistance increases, the pump must continue operating under higher back pressure. This makes proper pump selection very important for reliable filtration performance.

The AFP Series pump from AMEE Industries is built for these operating conditions. Its centrifugal working principle and semi-open impeller help manage slurry movement while reducing blockage-related issues. The non-clogging design is useful where suspended particles are present in the liquid.

Why Filter Press Pumps Are Important in Industrial Filtration

In a filter press system, the pump is often considered the heart of the operation. It controls how efficiently slurry enters the filter press and how consistently pressure is maintained during filtration. If the pump is not suitable for the application, the system may face uneven filtration, frequent downtime, slow cycle time, or higher maintenance requirements.

A well-designed filter press pump supports stable feed pressure, controlled flow, and effective separation of liquids and solids. This is especially important in industries where filtration quality directly affects production output, wastewater treatment, or material recovery.

For industrial users in Gujarat, choosing a suitable filter press side suction pump helps improve process reliability. Gujarat has a strong base of chemical, textile, dye, pharmaceutical, ceramic, and engineering industries where filtration is part of regular operations. In such environments, pumps must be durable, easy to maintain, and capable of handling demanding operating conditions.

Technical Specifications of Filter Press Side Suction Pump

The AFP Series Filter Press Side Suction Pump is designed with technical features that support demanding filtration applications. Its construction and performance range make it suitable for different industrial requirements.

These specifications make the pump suitable for different fluid conditions, temperature requirements, pressure ranges, and material compatibility needs. The availability of multiple materials of construction is especially important for industries handling corrosive, hot, or chemically active fluids.

Design Features of AFP Series Filter Press Pump

The design of a filter press pump must support both pressure handling and slurry movement. AMEE Industries has developed the AFP Series with features that help the pump perform under high back pressure conditions. The centrifugal construction supports efficient fluid movement, while the semi-open impeller helps handle suspended particles.

The single-row deep-grooved heavy-duty ball bearing with oil lubrication improves operational stability. Bearing support is important in industrial pumps because it affects smooth rotation, alignment, and long-term performance. Oil lubrication also helps reduce friction during operation.

• Centrifugal side suction pump construction
• Semi-open non-clogging impeller
• Suitable for high back pressure filtration systems
• Heavy-duty bearing support
• Oil-lubricated bearing arrangement
• Multiple material options for different process liquids
• Suitable for high-temperature applications up to 200°C

These features make the pump practical for applications where ordinary pumps may struggle due to slurry load, filtration pressure, or challenging process conditions.

Applications of Filter Press Side Suction Pump in Gujarat

Filter press pumps are used in many industries where solid-liquid separation is required. In Gujarat, industrial areas such as Ahmedabad, Vatva, Naroda, Ankleshwar, Vapi, Bharuch, Surat, Rajkot, and Morbi have strong demand for reliable filtration pumps.

• Chemical processing plants
• Dye and pigment industries
• Pharmaceutical processing units
• Effluent treatment plants
• Textile processing industries
• Ceramic and mineral processing plants
• Food and allied processing units
• Metal finishing and surface treatment units
• Industrial wastewater treatment systems
• Slurry filtration and process filtration systems

Each application may have different requirements related to flow, head, pressure, temperature, and material compatibility. Therefore, pump selection should be based on the actual process condition rather than only on size or capacity.

Material Selection and Process Compatibility

Material selection is one of the most important factors when choosing a filter press side suction pump. Industrial fluids can be acidic, alkaline, abrasive, corrosive, hot, or chemically sensitive. Using the wrong material may lead to corrosion, leakage, premature wear, and frequent maintenance.

The AFP Series pump is available in materials such as cast iron, carbon steel, stainless steel grades, Alloy 20, Hast Alloy, and CD4MCU. Stainless steel options such as SS304, SS316, SS304L, and SS316L are suitable for many corrosion-resistant applications. Alloy-based options are preferred where stronger chemical resistance is required.

For Gujarat-based industries, material choice often depends on the type of slurry, chemical composition, temperature, and filtration cycle. A pump used in chemical processing may need a different construction than one used in ceramic slurry or wastewater treatment.

How to Choose the Right Filter Press Pump

Selecting the right filter press pump requires a clear understanding of the complete filtration process. The pump should not only match the filter press size but also handle the liquid properties and pressure requirements of the application.

• Required flow capacity during filtration
• Maximum head and pressure requirement
• Nature of liquid or slurry
• Solid content and particle size
• Operating temperature
• Chemical compatibility
• Filter press size and cycle pattern
• Pump speed requirement
• Material of construction
• Maintenance accessibility

A carefully selected pump helps improve filtration consistency and reduces operational issues. Oversized or undersized pumps can both create problems. An oversized pump may increase energy usage and stress the system, while an undersized pump may fail to maintain the required pressure.

Role of Filter Press Pump in Effluent Treatment

Effluent treatment plants commonly use filter press systems to separate sludge from treated water. In such systems, the filter press pump feeds sludge slurry into the filter press chambers. The pump must handle varying solids concentration and maintain pressure as the filtration cycle progresses.

In Gujarat, many industrial units require wastewater treatment as part of regular operations. Chemical, textile, pharmaceutical, and engineering units often depend on filter presses to manage sludge and improve water handling. A reliable filter press side suction pump supports cleaner operation and better process control in such plants.

The non-clogging impeller design is useful for effluent and sludge-related applications because these fluids may contain suspended particles. Stable pump performance helps reduce interruptions during filtration.

Benefits of Using a Filter Press Side Suction Pump

A properly designed filter press side suction pump provides several operational benefits. These benefits are mainly related to filtration efficiency, process reliability, and long-term industrial performance.

• Supports high-pressure filtration requirements
• Helps in effective solid-liquid separation
• Suitable for slurry and suspension handling
• Reduces chances of clogging during operation
• Works under high back pressure conditions
• Offers material options for process compatibility
• Supports continuous industrial filtration cycles
• Helps improve filter press system performance

These benefits make the pump suitable for industries where filtration is not optional but a regular part of production or treatment.

Filter Press Side Suction Pump Manufacturer in Gujarat

Gujarat has a strong industrial environment, and local availability of industrial pumps is important for smooth plant operations. A filter press side suction pump manufacturer in Gujarat can better understand regional industrial applications such as chemical processing, effluent treatment, textile filtration, and slurry handling.

AMEE Industries, located in Ahmedabad, Gujarat, manufactures filter press side suction pumps under the AFP Series. The company provides pumps designed for filtration applications where pressure, durability, and process compatibility are important. Its product range supports different industrial needs, including centrifugal pumps, chemical process pumps, back pull out pumps, and filter press pumps.

For industries looking for filter press pumps in Gujarat, it is important to evaluate technical specifications, material compatibility, and application suitability before finalizing the pump.

Maintenance Considerations for Filter Press Pumps

Regular maintenance helps improve pump life and filtration performance. Since filter press pumps often handle slurry or suspended particles, inspection should be part of routine plant maintenance. Bearing condition, lubrication, impeller condition, sealing arrangement, and alignment should be checked at regular intervals.

The oil-lubricated bearing design in the AFP Series supports smooth running when maintained properly. Operators should also monitor abnormal vibration, unusual noise, leakage, and pressure variation. Early identification of such signs helps avoid sudden breakdowns.

Maintenance should always be planned according to the operating condition of the plant. Pumps handling corrosive, hot, or abrasive fluids may need more frequent inspection compared to pumps handling cleaner liquids.
