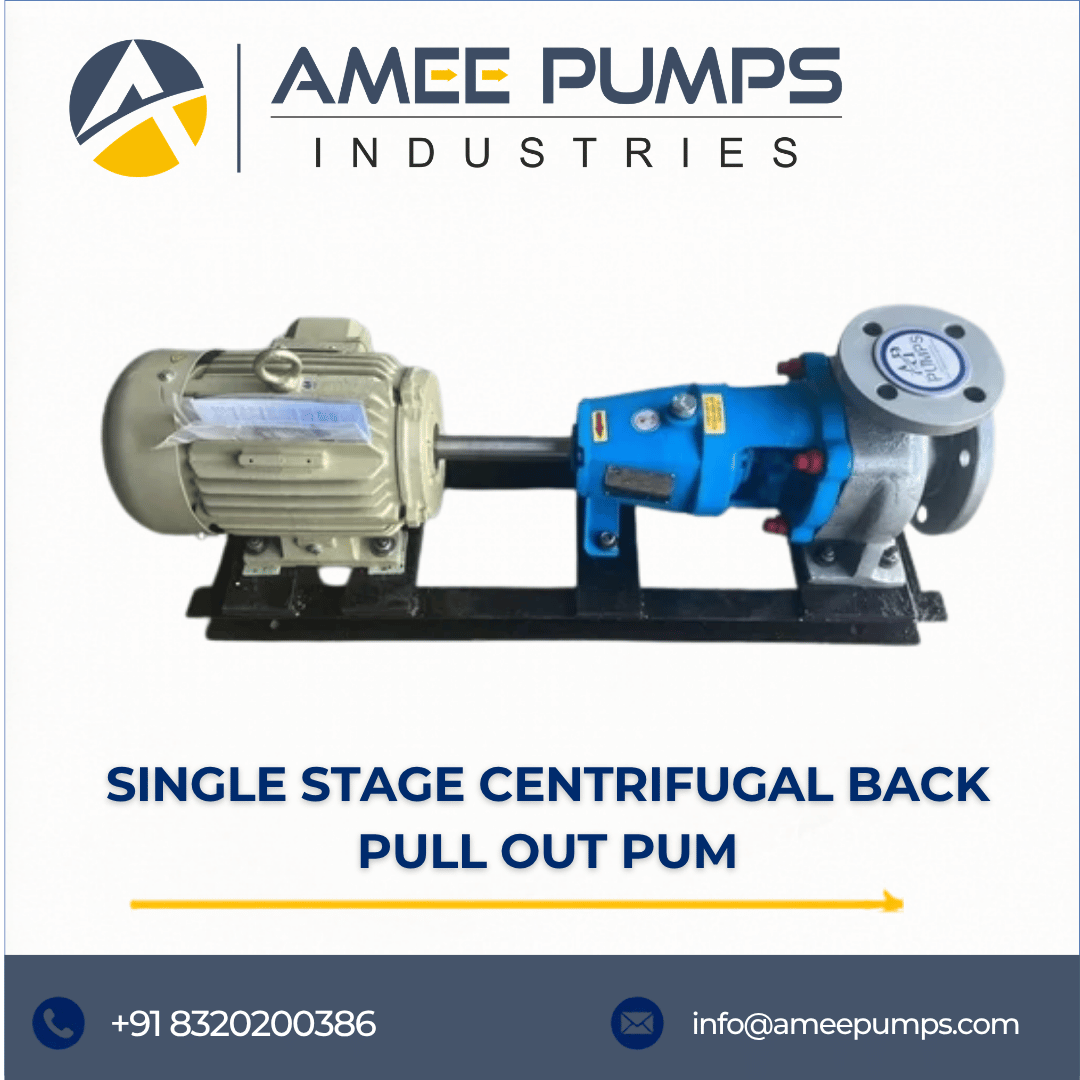

Single Stage Centrifugal Back Pull Out Pump
The Single Stage Centrifugal Back Pull Out Pump represents a pinnacle of design efficiency and maintenance practicality in fluid handling systems. Engineered for reliability and accessibility, these pumps are instrumental across a wide spectrum of industrial operations. Their unique back pull-out design significantly simplifies servicing, a critical factor in minimizing operational downtime and maximizing productivity. This guide delves into the core aspects of these pumps, from their fundamental operation and diverse applications to the crucial considerations for selecting the right unit for your specific requirements.
Understanding the Single Stage Centrifugal Back Pull Out Pump
At its heart, a single-stage centrifugal pump utilizes a single impeller to impart kinetic energy to a fluid, which is then converted into pressure energy. The defining characteristic of the 'back pull-out' design is its ingenious construction that allows the entire rotating assembly – including the impeller, shaft, bearings, and mechanical seal or packing – to be withdrawn from the pump casing without disconnecting the casing from the pipework or the motor from the pump. This is a substantial advantage in industrial settings where accessibility and quick turnaround times for maintenance are paramount.
The process begins with the motor driving the shaft, which in turn spins the impeller. Fluid enters the impeller eye and is accelerated radially outwards by the rotating vanes. As the fluid exits the impeller periphery, it enters the volute casing, a specially shaped chamber that gradually increases in cross-sectional area. This expansion slows down the fluid velocity, efficiently converting its kinetic energy into static pressure. The back pull-out feature ensures that if the impeller, shaft, bearings, or the sealing mechanism requires attention, the entire motor and pump shaft assembly can be easily slid out, exposing these components for inspection and repair while the stationary casing remains securely in place.
Versatile Applications Across Industries
The robust design and maintenance-friendly nature of single-stage centrifugal back pull-out pumps make them indispensable in numerous sectors. Their ability to handle various types of liquids, coupled with ease of service, leads to their widespread adoption:
- Water Supply and Distribution: Efficiently transferring clean water for municipal and industrial use.
- Wastewater Treatment: Handling effluent and treated water in treatment plants, where reliability is key.
- Chemical Processing: Transferring a wide range of chemicals, with material selection crucial for corrosion resistance.
- HVAC Systems: Circulating water for heating, ventilation, and air conditioning systems in commercial buildings.
- General Industrial Services: Used for diverse tasks such as cooling tower circulation, process fluid transfer, and general fluid management.
- Irrigation Systems: Providing water for agricultural purposes, ensuring efficient crop hydration.
Key Benefits Driving Adoption
The popularity of single-stage centrifugal back pull-out pumps is underpinned by several significant advantages:
Ease of Maintenance
The primary benefit is the simplified servicing. Removing the rotating parts without dismantling the pipeline drastically reduces maintenance time and costs.
Reduced Downtime
Faster maintenance directly translates to less operational downtime, ensuring continuous workflow and productivity in industrial environments.
Reliable Fluid Transfer
These pumps are designed for efficient and dependable transfer of clean or slightly contaminated liquids, making them suitable for many core industrial processes.
Robust Construction
Built to withstand demanding industrial conditions, their durable construction ensures longevity and consistent performance.
Selecting the Right Single Stage Centrifugal Back Pull Out Pump
Choosing the appropriate pump is critical for optimal performance and longevity. Consider these factors:
Essential Selection Criteria:
- Fluid Characteristics: Understand the nature of the liquid to be pumped – its viscosity, temperature, presence of solids, corrosiveness, and abrasiveness. This dictates the materials of construction for the pump casing, impeller, and seal.
- Flow Rate and Head Requirements: Determine the required volume of fluid per unit of time (flow rate) and the total pressure the pump must overcome (head). These parameters define the pump's operating point.
- Operating Conditions: Consider the suction conditions (NPSHa), operating pressure, and ambient temperature.
- Materials of Construction: Select appropriate materials (e.g., cast iron, stainless steel, specialized alloys) based on the fluid's chemical compatibility and any abrasive properties.
- Sealing Arrangement: Decide between mechanical seals or gland packing based on the fluid, operating conditions, and maintenance preferences. Mechanical seals often offer better sealing and less leakage for many applications.
Buyer Insight:
When evaluating pumps, always prioritize the ease of access to wear parts like the mechanical seal and bearings. The back pull-out design is a significant advantage here, but ensure there is adequate space around the pump for the assembly to be withdrawn during maintenance.
Questions to Ask Before Purchasing:
- What is the precise flow rate and head required for my application?
- What are the exact properties of the fluid being pumped (chemical composition, temperature, solids content)?
- What materials of construction are compatible with my fluid and operating conditions?
- What type of sealing arrangement is most suitable (mechanical seal or packing)?
- What is the expected lifespan of critical components like the mechanical seal and bearings?
- What are the necessary clearances for withdrawing the back pull-out assembly?
AMEE Pumps Industries: Your Partner in Pumping Solutions
AMEE Pumps Industries is a dedicated manufacturer specializing in centrifugal pumps, offering a robust selection of high-quality fluid handling equipment. Their range includes expertly engineered Single Stage Centrifugal Back Pull Out Pumps, designed to meet the rigorous demands of various industrial applications. With a focus on performance and maintainability, AMEE Pumps Industries provides reliable solutions that contribute to operational efficiency and reduced downtime for their clients. Their commitment is to deliver pumps that not only meet but exceed the expectations for durability and ease of service in challenging environments.
Frequently Asked Questions
What is the primary advantage of a back pull-out pump design?
The primary advantage is the ability to service the pump's rotating components (impeller, shaft, bearings, seal) without dismantling the pump casing from the piping or the motor from the pump. This significantly reduces maintenance time and minimizes operational downtime.
Can these pumps handle liquids with solids?
While primarily designed for clean or slightly contaminated liquids, the suitability for liquids with solids depends on the specific impeller type and pump design. Some models can handle a certain percentage of solids. Material selection is also critical if the fluid is abrasive.
How do I determine the correct pump size?
Correct pump sizing involves analyzing the system's hydraulic requirements, specifically the desired flow rate and the total head the pump must overcome. Consulting with a pump specialist or using performance curves provided by the manufacturer is recommended.
What is the difference between mechanical seals and gland packing?
Mechanical seals are a more modern and generally more effective sealing solution, often requiring less maintenance and providing better leak prevention. Gland packing (or stuffing box) uses compressible material to seal the shaft and is an older technology, often requiring more frequent adjustment and replacement but can be easier to repair in some field situations.
