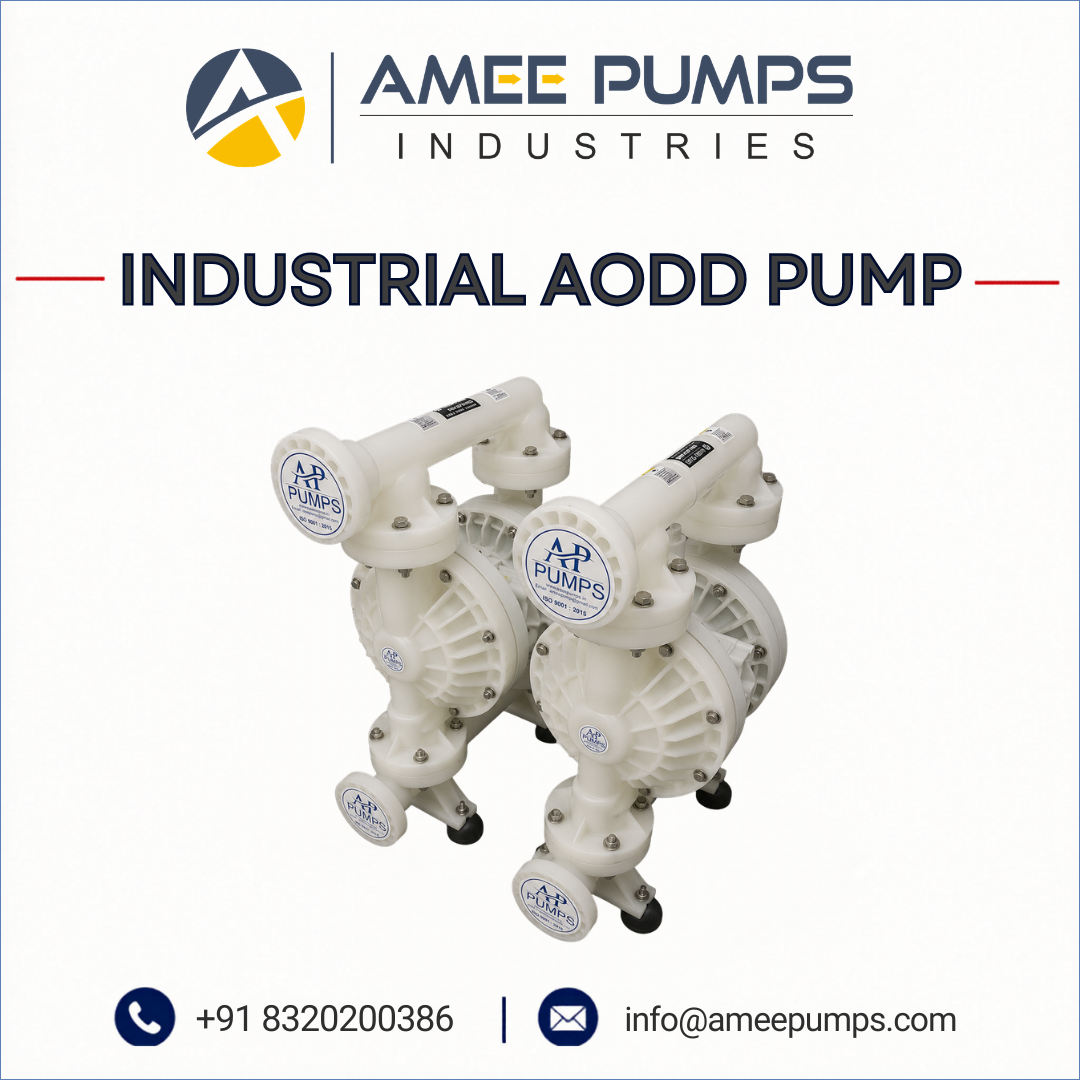

What is an Industrial AODD Pump? An Overview

An Air Operated Double Diaphragm (AODD) pump, also known as a pneumatic pump, is a positive displacement pump that utilizes compressed air to drive its operation. It consists of two chambers, each with a diaphragm. As one diaphragm moves inward, it expels fluid from its chamber while simultaneously drawing fluid into the other chamber. Compressed air is alternately supplied to the back of each diaphragm, creating a reciprocating motion that pumps fluid. This design allows for self-priming capabilities, the ability to run dry without damage, and gentle fluid handling, making them suitable for a broad spectrum of industrial fluids.

Key Features and Technical Specifications

Industrial AODD pumps are engineered with specific features to meet demanding operational requirements. Understanding these specifications is crucial for matching the pump to the application.

• Pressure Rating: Capable of generating pressures up to 10 KG/CM² (approximately 145 PSI), suitable for many transfer and process applications.
• Maximum Capacity: Offers a high flow rate of up to 800 LPM (liters per minute), enabling efficient handling of large volumes.
• Connection Sizes: Available in a comprehensive range of port sizes from 1/2 inch to 3 inches, allowing for flexible integration into various piping systems.
• Pump Body Material: Constructed from robust materials like Polypropylene, PVDF, SS304, and SS316, ensuring chemical compatibility and durability in corrosive environments.
• Diaphragm Material: Diaphragms are available in Neoprene, Santoprene, Teflon, Hypalon, and EPDM, providing options for different chemical resistance and temperature requirements.
• Non-Return Valve (NRV) Ball Material: NRV balls are offered in Neoprene, Viton, and Teflon, crucial for maintaining flow direction and pump efficiency.
• Air Valve System: Designed for reliable and efficient air distribution, minimizing downtime and ensuring consistent performance.
• Sealless Design: Eliminates the need for mechanical seals, reducing leakage risks and maintenance requirements.

Industrial Applications and Use Cases

The versatility of AODD pumps makes them indispensable across numerous industrial sectors. Their ability to handle diverse fluid types and operating conditions opens up a wide range of applications.

• Chemical Transfer: Safely transferring acids, alkalis, solvents, and other corrosive or hazardous chemicals in chemical processing plants.
• Ink and Dye Transfer: Pumping inks, dyes, and pigments in the printing and textile industries, often handling viscous and shear-sensitive formulations.
• High Viscosity Liquid Pumping: Moving viscous liquids like adhesives, resins, paints, and slurries where other pump types might struggle.
• Solvent Transfer: Efficiently transferring various solvents used in manufacturing, cleaning, or extraction processes.
• Abrasive Slurry Handling: Pumping abrasive materials such as ceramic slurries or wastewater containing solids, thanks to their robust construction and diaphragm design.
• Food and Beverage Processing: Transferring food-grade liquids, pastes, and ingredients where hygiene and gentle handling are critical.
• Pharmaceutical Applications: Pumping sensitive pharmaceutical ingredients, solvents, and finished products, often requiring specific material compatibility.
• Wastewater and Effluent Transfer: Moving industrial wastewater, sludge, and effluents in treatment plants or manufacturing facilities.

How to Choose the Right Industrial AODD Pump

Selecting the appropriate AODD pump is critical for optimal performance, longevity, and safety. Consider these key factors when making your decision:

• Fluid Characteristics: Analyze the viscosity, specific gravity, temperature, and chemical compatibility of the fluid to be pumped. This dictates the required pump materials and diaphragm type.
• Flow Rate and Pressure Requirements: Determine the necessary flow rate (LPM or GPM) and the discharge pressure (PSI or Bar) needed for your application.
• Material of Construction: Select pump body, diaphragm, and valve materials that are resistant to the specific chemicals or abrasives being handled.
• Solids Handling Capability: If pumping fluids with solids, check the maximum particle size the pump can handle.
• Air Supply: Ensure you have a reliable source of compressed air with adequate pressure and volume to operate the pump efficiently.
• Certifications and Standards: Verify if the pump meets any industry-specific certifications or compliance standards required for your application (e.g., ATEX for hazardous environments).
• Supplier Support and Service: Consider the availability of spare parts, technical support, and after-sales service from the manufacturer or supplier.
• Customization Needs: Assess if your application requires any specific modifications or custom configurations.

Quality Standards and Compliance

For industrial applications, especially those involving hazardous materials or stringent process controls, adhering to quality standards and compliance is non-negotiable. Reputable AODD pump manufacturers ensure their products meet recognized industry benchmarks. This often includes adherence to ISO certifications for quality management systems, demonstrating a commitment to consistent product quality and manufacturing processes. For pumps used in potentially explosive atmospheres, compliance with ATEX directives is essential. Buyers should always inquire about the specific certifications and testing procedures a manufacturer follows to ensure the pump's suitability and safety for their intended use. Verifying these aspects upfront builds confidence in the equipment's reliability and compliance with regulatory requirements.

Why Amee Pumps Industries' Experience and Capability Matters

At Amee Pumps Industries, our extensive experience in designing and manufacturing industrial AODD pumps for the Ahmedabad market and beyond is a significant advantage for our clients. We understand the unique challenges faced by local industries, from handling aggressive chemicals in the chemical belt to managing viscous fluids in textile processing. Our manufacturing process emphasizes precision engineering and robust construction, utilizing high-quality materials selected for their durability and chemical resistance.

Our technical team possesses deep expertise in fluid dynamics and pump design, enabling us to offer tailored solutions and expert advice. We maintain stringent quality control measures throughout production, ensuring each pump meets our high standards before it leaves our facility. This commitment extends to our after-sales support, where we provide reliable service and readily available spare parts to minimize any potential downtime for our customers. Our capability to customize pump configurations further ensures that clients receive a solution perfectly suited to their specific operational needs.

Installation, Maintenance, and Care Tips

Proper installation and regular maintenance are key to maximizing the lifespan and performance of your industrial AODD pump.

• Installation: Ensure the pump is installed on a stable, level surface. Connect air lines with appropriate filters and regulators to provide clean, dry air at the correct pressure. Verify all fluid connections are secure and leak-free. For hazardous environments, ensure all electrical components and grounding are compliant with safety regulations.
• Air Valve Lubrication: While many modern AODD pumps feature lube-free air valve systems, always consult the manufacturer's manual. If lubrication is required, use only the recommended type and amount of lubricant.
• Diaphragm and Valve Checks: Periodically inspect diaphragms for signs of wear, cracking, or fatigue. Check the integrity of the NRV balls and seats to ensure proper sealing and prevent backflow.
• Fluid Compatibility: Always double-check that the pump's wetted parts (body, diaphragms, balls, seats) are compatible with the fluid being pumped. Chemical attack can lead to premature failure.
• Air Filter Maintenance: Regularly clean or replace air filters to ensure a consistent supply of clean air to the pump, preventing premature wear on the air valve and motor components.
• Winterization: In colder climates, ensure the pump is drained of all fluid if it will be exposed to freezing temperatures to prevent damage from ice expansion.
• Troubleshooting: Familiarize yourself with common troubleshooting steps for issues like reduced flow, air leaks, or unusual noises. Often, issues can be resolved with simple adjustments or part replacements.

Frequently Asked Questions

Conclusion

For industries in Ahmedabad seeking reliable, adaptable, and low-maintenance fluid transfer solutions, industrial AODD pumps offer a compelling option. Their ability to handle diverse and challenging liquids, coupled with their inherent safety features like the sealless design and pneumatic operation, makes them a cornerstone of efficient industrial processes. When selecting an AODD pump, careful consideration of fluid characteristics, operational requirements, and material compatibility is essential. Partnering with an experienced manufacturer like Amee Pumps Industries ensures you receive not only a high-quality product but also the technical expertise and support needed to optimize your fluid handling operations.
