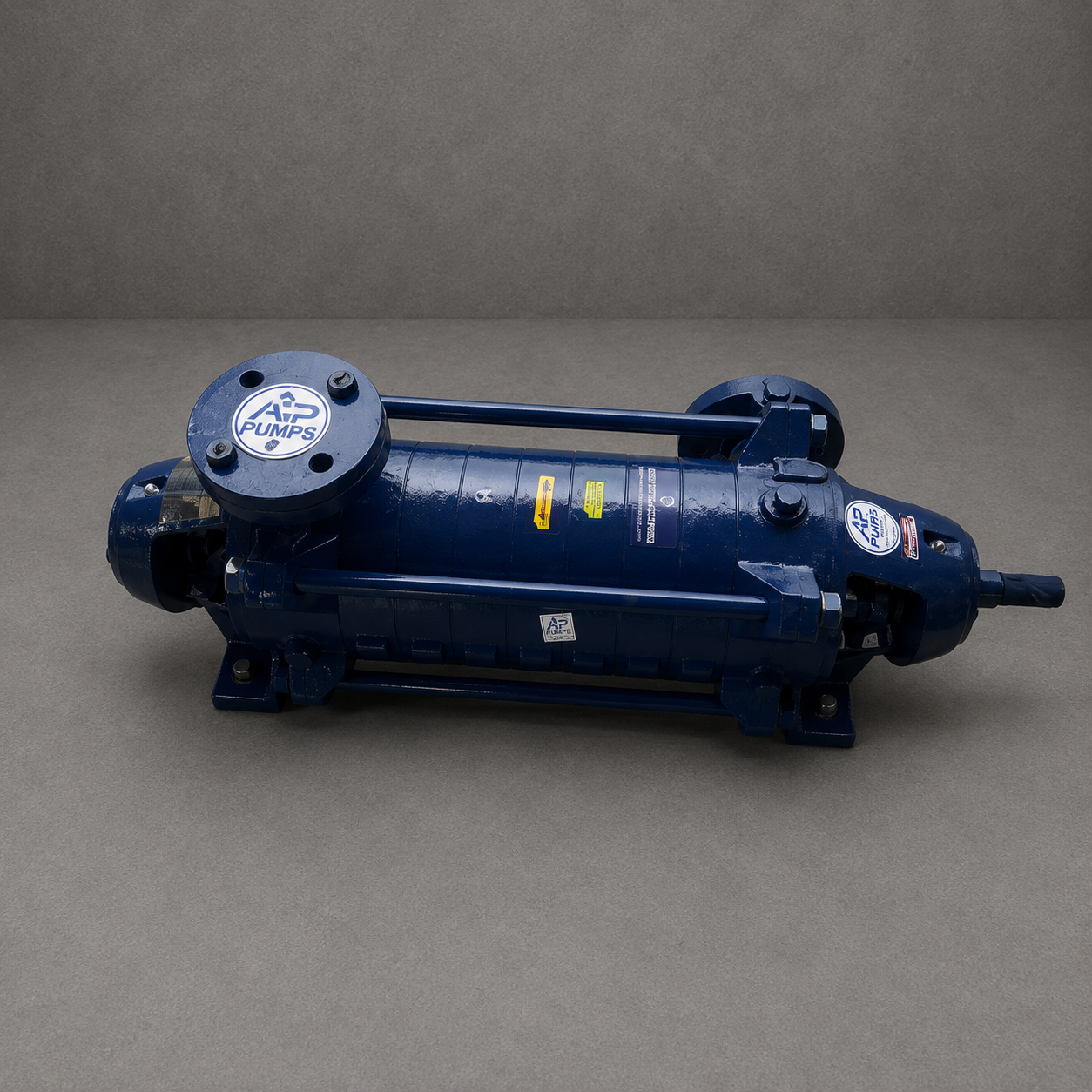

HIGH PRESSURE MULTISTAGE BOILER FEED PUMP
Material Of Construction
- SS-316, SS-316L
- SS-304, SS-304L
- Cast bronze
- Cast steel
- Cast iron etc
Features
-
Axial thrust compensated by balancing drum.
-
Barrel type construction.
-
Multi stage with single suction die casting closed impeller.
-
Heavy duty ball bearings capable to carry thrust load on either direction. grease lubricated bearing for longer life.
-
Un-cooled soft-packing are provided media temperatures. a stuffing box can be provided with cooling cover facilitating the external cooling.
-
All the flanges are faced and drilled as per din standards.
-
Pump designed to drive by an electric motor through flexible coupling. direction of rotation is clockwise viewed from drive end.
Application
Mine - Dewatering & Descaling.
Boiler Feed Water Service.
High Pressure Application in Pulp & Paper Mills..
General Water & Fire Fighting Systems.
Main & Auxiliary Condensate Extraction.
Sprinkler Irrigation.
Filter Press Washing.
Water Supply to High Raise Buildings.
Operating Range
Capacity
Up to 75 m³/hr
Head
Up to 280 Mtr
Discharge Size
Dn 32 to 65 mm
Temperature
Up to 140°C
Speed
Up to 3500 RPM
Pressure
Up to 28 kg/cm²
