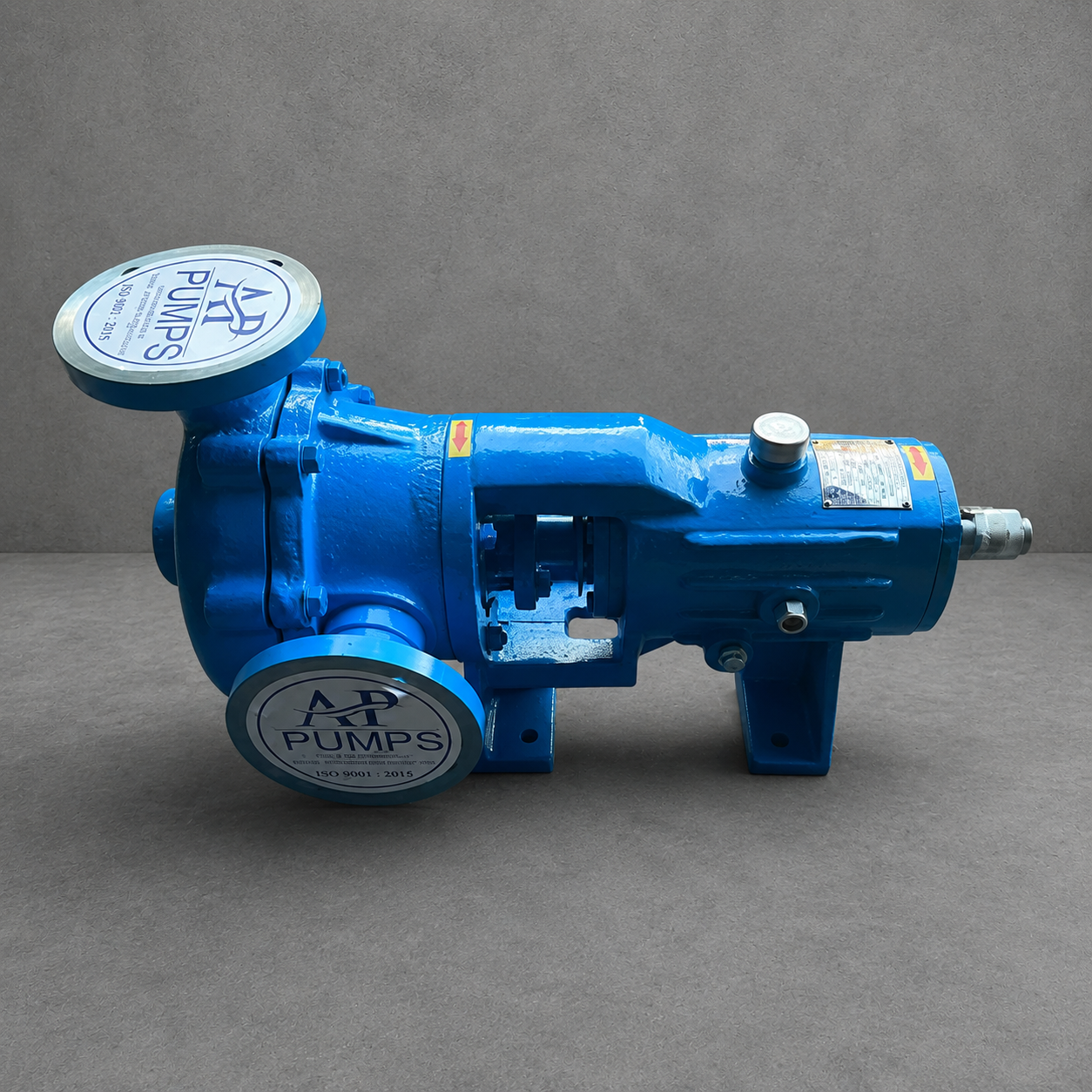

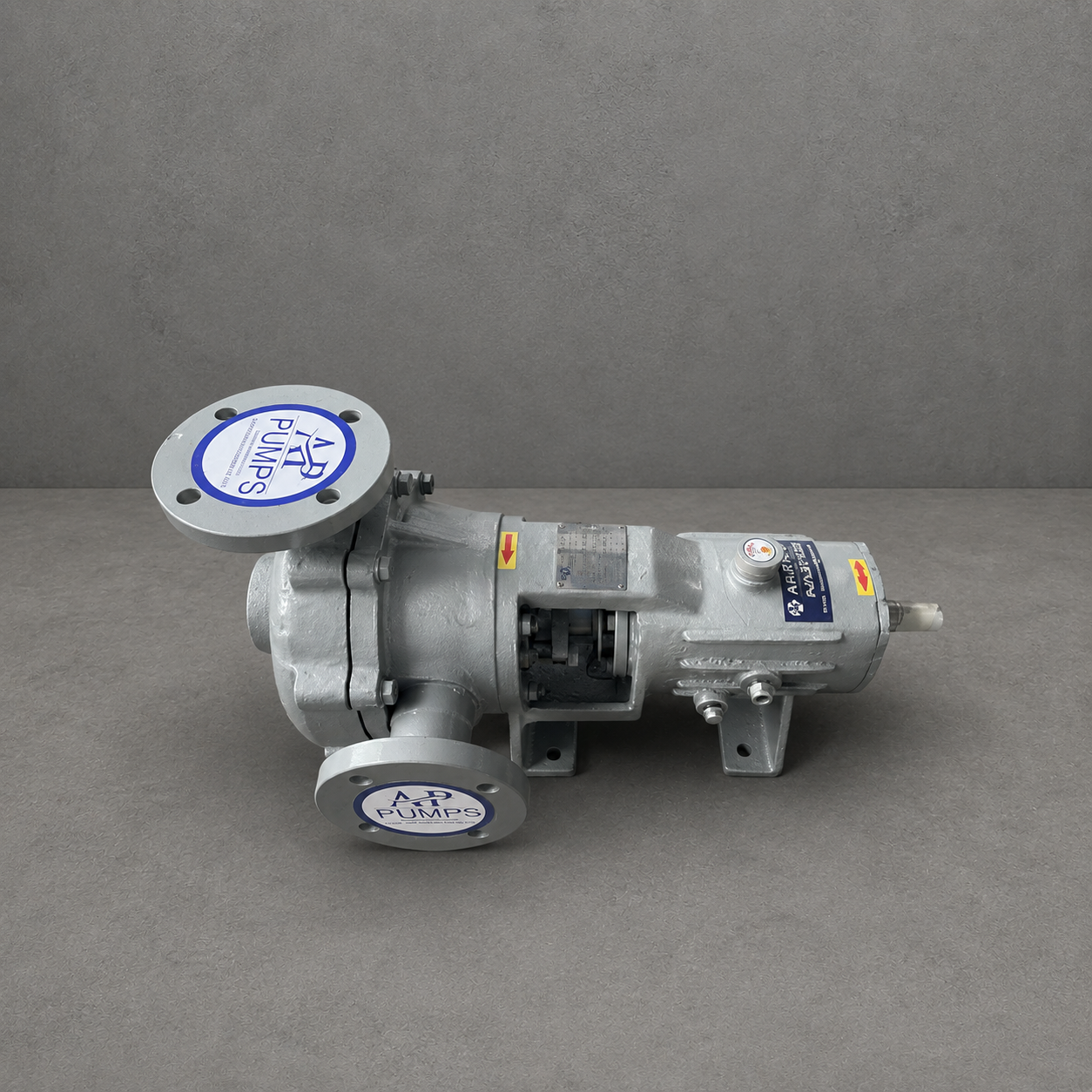

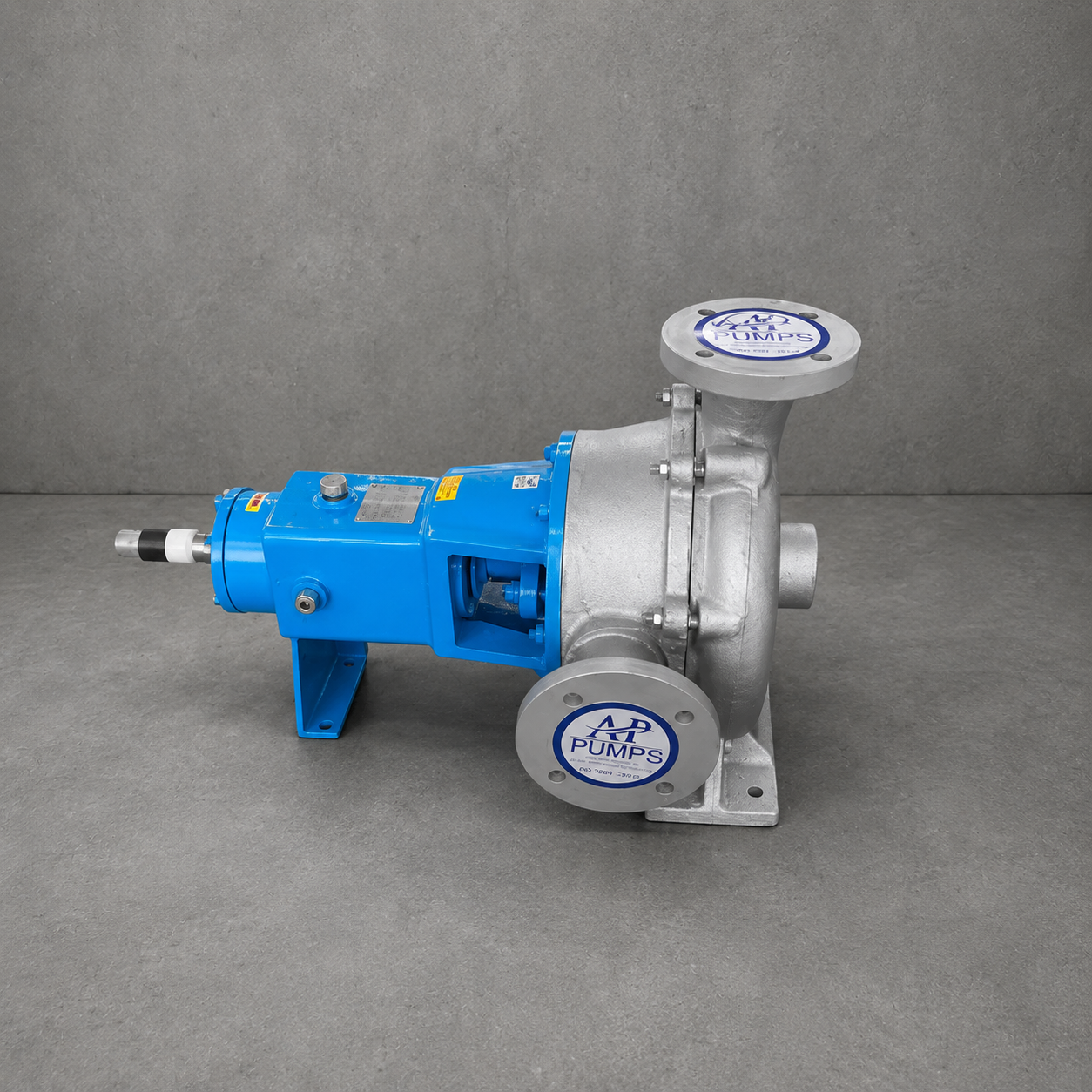

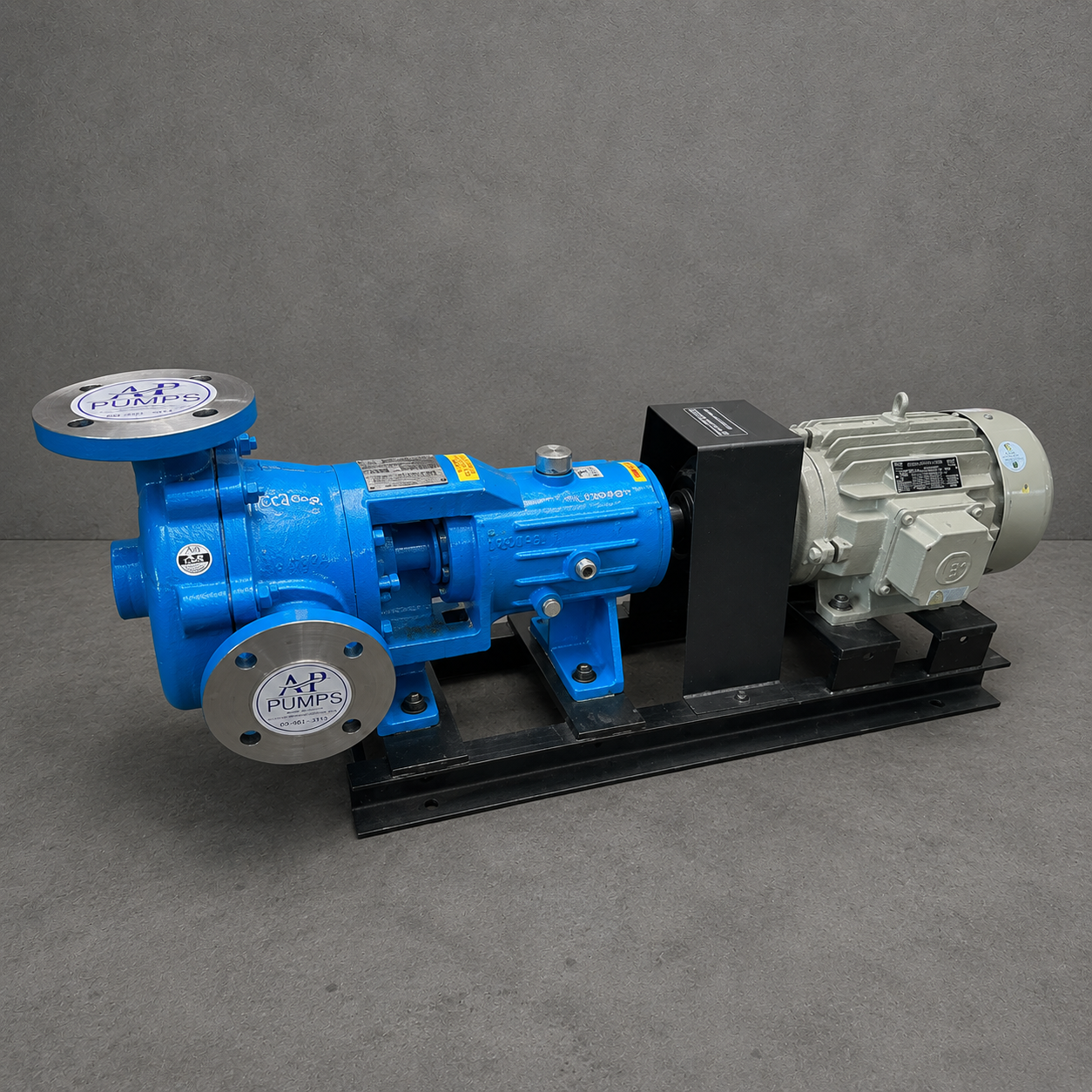

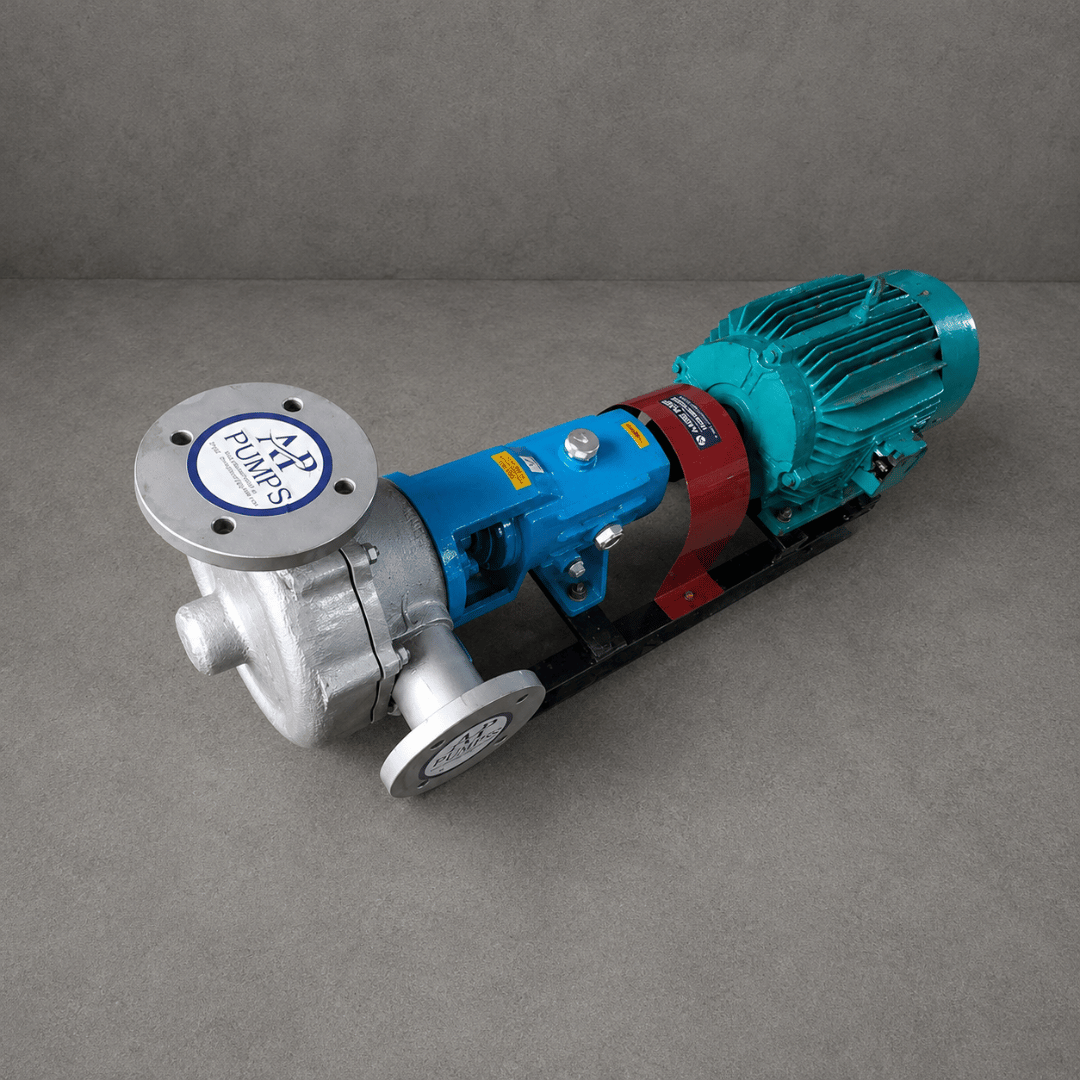

Filter Press Side Suction Pump

AMEE INDUSTRIES has specially developed the finest quality Filter Press Pump, popularly known as the AFP Series. This pump is designed to filtrate suspensions under high-pressure conditions, efficiently separating liquids and solids. Acting as the heart of the entire filter press system, it features a centrifugal, semi-open, non-clogging impeller supported by a single-row deep-grooved heavy-duty ball bearing with oil lubrication. The AFP Series pump is highly suitable for operations involving extremely high back pressure.

Technical Specifications

Type
Side Suction Centrifugal Pump
Capacity
Up to 75 m3/hr
Head
Up to 96 Mtr
Pressure
Up to 7 kg/cm2
Size
25 mm to 65 mm
Speed
1450 RPM / 2880 RPM Both
Temp
Up to 200°C
APPLICATIONS
M.O.C. CI, CS, SS304/316, SS304L/316L, Alloy 20, Hast Alloy B or C, CD4MCU, etc.
