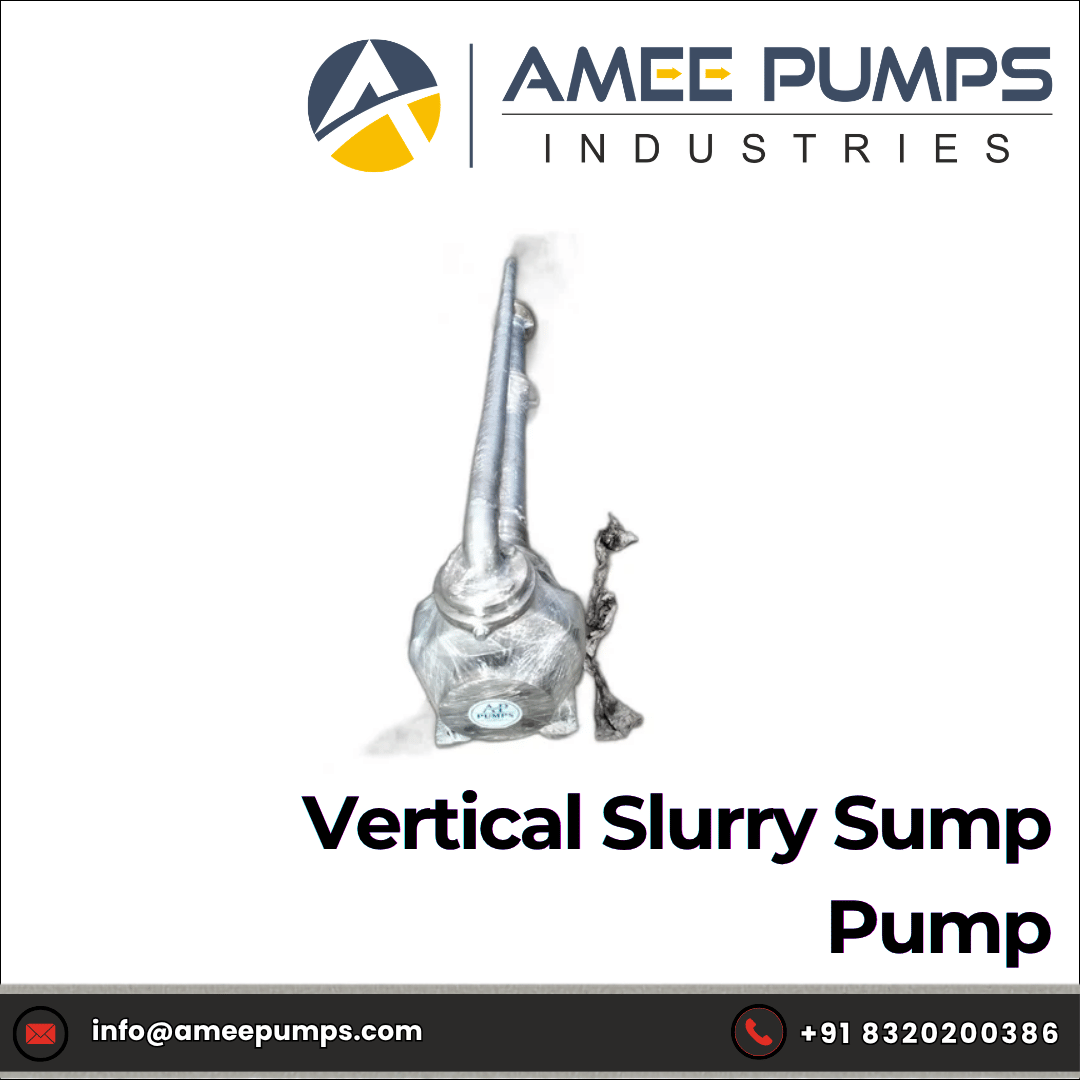

Vertical Slurry Sump Pump
Vertical Slurry Sump Pump
In demanding industrial settings where the transport of abrasive and corrosive liquids is a daily challenge, the role of a reliable and efficient pump cannot be overstated. Vertical slurry sump pumps are engineered precisely for these harsh conditions, offering a specialized solution for moving mixtures of solids and liquids. Unlike standard pumps, these vertical configurations are designed to operate submerged in the fluid they are pumping, often from a sump or pit, minimizing priming issues and handling materials that would quickly degrade less robust equipment. AMEE Pumps Industries provides robust vertical slurry sump pumps, designed to meet the rigorous demands of industries such as mining, power generation, chemical processing, and wastewater treatment.
Understanding Vertical Slurry Sump Pumps
A vertical slurry sump pump is a type of centrifugal pump specifically built to handle fluids containing a high concentration of abrasive solids, often referred to as slurry. Its vertical orientation is key to its functionality, allowing it to be installed in sumps, pits, or tanks, with the intake positioned below the fluid level. This design inherently provides a self-priming capability and ensures the pump is always submerged, which is crucial for cooling and lubrication when handling abrasive or corrosive materials.
A significant design advantage found in many vertical slurry sump pumps is the cantilevered shaft design. This means the pump shaft extends down into the sump without the need for submerged bearings or seals in the fluid path. Bearings and seals are often the first components to fail when exposed to abrasive slurries. By placing them above the sump, they are kept clear of the most abrasive material, leading to increased reliability and reduced maintenance requirements. The pump impeller is submerged, driving the slurry upwards through the discharge pipe.
These pumps are typically constructed from highly durable materials to withstand the erosive and corrosive nature of the fluids they handle. Common materials include high-chromium alloys, hardened steels, natural rubber, and various synthetic rubbers, selected based on the specific chemical composition and particle characteristics of the slurry.
Key Applications of Vertical Slurry Sump Pumps
The versatility and robustness of vertical slurry sump pumps make them indispensable in a wide array of industrial sectors:
Mining Operations
Essential for transferring mineral slurries, tailings, and process water containing abrasive solids from sumps to processing areas or storage. They are crucial in mineral processing plants and dewatering operations.
Chemical Plants
Used to pump corrosive chemical slurries and process fluids that would rapidly degrade standard pump materials. The specialized construction ensures longevity in aggressive chemical environments.
Power Plants
Critical for handling ash slurries from coal-fired power plants, as well as lime slurries used in flue gas desulfurization (FGD) systems, which are highly abrasive and corrosive.
Wastewater Treatment
Ideal for pumping sludge, grit, and effluent containing solids in municipal and industrial wastewater treatment facilities. They can handle large solids and maintain reliable operation.
Construction & Dredging
Used in construction projects for dewatering excavations and in dredging operations to move sediment and debris from waterways.
Papermaking Industry
Applicable for pumping pulp slurries and process water containing fibers and other solids in paper mills.
Key Benefits of Using Vertical Slurry Sump Pumps
The specialized design of vertical slurry sump pumps offers several distinct advantages:
- Enhanced Reliability: The cantilevered design, free from submerged bearings and seals, significantly reduces common points of failure, leading to extended operational life and reduced downtime.
- Superior Wear Resistance: Constructed with specialized alloys and robust elastomers, these pumps are built to endure highly abrasive and corrosive slurries, maintaining performance over time.
- Simplified Installation: Their vertical orientation often simplifies installation in existing pits or sumps, requiring less complex piping and fewer auxiliary components compared to horizontal pump setups for similar applications.
- Continuous Operation: Being sump-mounted, these pumps ensure a consistent fluid supply to the impeller, preventing dry running and enabling continuous, uninterrupted operation in many applications.
- Versatile Fluid Handling: Capable of handling slurries with high solids content and even large particles, some models can be equipped with agitators to keep solids suspended or feature designs optimized for specific particle sizes.
Selecting the Right Vertical Slurry Sump Pump
Choosing the appropriate vertical slurry sump pump is critical for optimal performance and longevity. Consider these factors:
Critical Selection Criteria
Slurry Characteristics
Understand the abrasiveness, corrosivity, pH, specific gravity, and viscosity of the slurry. Also, note the size, shape, and concentration of solids. This dictates material selection and pump design.
Application Requirements
Determine the required flow rate, total head, and operating temperature. Consider the depth of the sump and the required submergence level for the pump.
Material Construction
Select pump components (impeller, casing, liners) made from materials like high-chromium iron, rubber-lined steel, or other wear-resistant alloys that are compatible with the slurry's chemical and physical properties.
Impeller Type
Options include open, semi-open, or vortex impellers. Vortex impellers are excellent for slurries with large solids or stringy material, as they create a vortex and don't directly contact the fluid.
Discharge Arrangement
Ensure the pump's discharge orientation and connection size are suitable for integration into your existing piping system.
Motor and Drive
Consider the required motor power, enclosure type (to protect against dust and moisture), and whether a direct drive or V-belt drive is more appropriate for the application and maintenance needs.
Buyer Insight: The absence of submerged bearings and seals in a vertical slurry pump is a paramount feature. Always verify that the pump design eliminates these common failure points in the fluid path to ensure maximum reliability and minimal maintenance in abrasive applications.
Questions to Ask Before Buying
What are the specific material options available for handling my slurry?
Ask about the range of wear-resistant alloys and elastomers offered and how they match your slurry's chemical and abrasive properties. For instance, AMEE Pumps Industries designs pumps suitable for abrasive and corrosive liquids.
How does the cantilevered design benefit my operation?
A cantilevered shaft design means no submerged bearings or seals in the slurry path, which are primary failure points. This leads to significantly reduced maintenance and extended pump life.
Can the pump handle the particle size and concentration in my slurry?
Inquire about the pump's capability for handling large solids and its maximum solids concentration. Some pumps can be fitted with agitators to prevent solids from settling.
What are the installation requirements for the sump and pump discharge?
Understand the necessary sump dimensions, required submergence depth, and how the discharge piping needs to be configured for optimal performance and accessibility.
What maintenance is typically required, and how often?
While designed for low maintenance, understand the recommended inspection schedule for wear parts like impellers and liners, and the procedure for lubrication of above-ground components.
AMEE Pumps Industries: Your Partner for Slurry Pumping Solutions
AMEE Pumps Industries specializes in the design and manufacture of high-quality industrial pumps, including a robust range of vertical slurry sump pumps. Located in Ahmedabad, Gujarat, India, the company is committed to providing reliable solutions for challenging fluid handling tasks. Their vertical slurry sump pumps are engineered to handle abrasive and corrosive liquids effectively, making them suitable for critical applications in sectors like chemical plants, steel industries, power plants, and mining operations. By focusing on durable construction and practical design principles, AMEE Pumps Industries aims to deliver pumps that offer extended service life and consistent performance, even in the most demanding industrial environments.
Frequently Asked Questions
What is a vertical slurry sump pump?
A vertical slurry sump pump is a type of industrial pump designed to operate submerged in a sump or pit, specifically engineered to handle abrasive solids and corrosive liquids. Its vertical design and cantilevered shaft (often) prevent common failure points associated with submerged bearings and seals.
Where are vertical slurry sump pumps commonly used?
They are widely used in industries such as mining, chemical processing, power generation (for ash and FGD slurries), wastewater treatment, construction, and papermaking, wherever abrasive or corrosive slurries need to be reliably transported.
What makes a vertical slurry sump pump different from a standard sump pump?
Standard sump pumps are typically designed for clear water or lightly soiled water. Vertical slurry sump pumps are built with specialized, highly wear-resistant materials and robust designs to withstand the erosive forces of abrasive solids and the corrosive effects of aggressive chemicals commonly found in slurries.
Can these pumps handle large solids?
Many vertical slurry sump pumps are designed to handle significant particle sizes. Some models incorporate features like vortex impellers or agitators to manage high solids concentrations and large particles effectively.
Ready to Optimize Your Slurry Handling?
Ensure your operations run smoothly with a high-performance vertical slurry sump pump. Contact AMEE Pumps Industries today to discuss your specific application requirements and receive a tailored solution. Leverage our expertise to select the most reliable and efficient pump for your challenging industrial needs.
